Every Drop of Water You Have Ever Used Ran Through a Control Panel
- mktg743
- 5 hours ago
- 8 min read
You turned on the tap this morning. Water came out. Cold, clean, and completely unremarkable.
That is the goal. When the system works, nobody thinks about it. Nobody asks what triggered the chlorine dosing at 4am or what kept the pressure up overnight. Nobody wonders what happened between the river and their coffee cup.
That is our world. And it is more interesting than most people give it credit for.
💧 Drinking Water
Clean water starts with precise control.
Before water reaches your glass it moves through coagulation, filtration, and disinfection. Every one of those steps has setpoints and automated responses running inside a programmable logic controller (PLC) housed inside an industrial control panel.
Take chlorination alone. The residual chlorine in your finished water has to stay within a tight band. Too little and pathogens survive. Too much and you create a health concern. The control system adjusts disinfectant dosage automatically based on real-time water quality parameters. That decision is not made by a person standing at a valve. It is running in logic inside a chemical feed control panel that someone designed, wired, and programmed.
High service pump panels, filter control panels, and a plant-wide SCADA system tie the whole operation together so one operator can see everything from a single screen.
When that logic is right, the water is safe. When it is wrong, a city gets a boil water notice. The margin for error is zero.
🔄 Wastewater
The side of water nobody talks about until it fails.
Every time you flush, that water travels through the collection system to a lift station where submersible pumps push sewage uphill to the next point in the system. These sites are remote. They are wet. They run 24 hours a day, 365 days a year, and they cannot fail.
A duplex pump panel at a lift station runs lead-lag alternation logic, monitors float levels, watches seal fail circuits, tracks runtime hours, and sends all of it back through a cellular RTU panel to a central SCADA platform. When that logic is built right, nobody knows the lift station exists. When it is built wrong, sewage backs up into a neighborhood at 2am.
At the treatment plant you will find aeration basin control panels managing blowers and diffusers, clarifier drive panels controlling solids removal equipment, UV disinfection panels before final effluent discharge, and a plant-wide SCADA system giving operators a live view of every process from influent to final effluent.

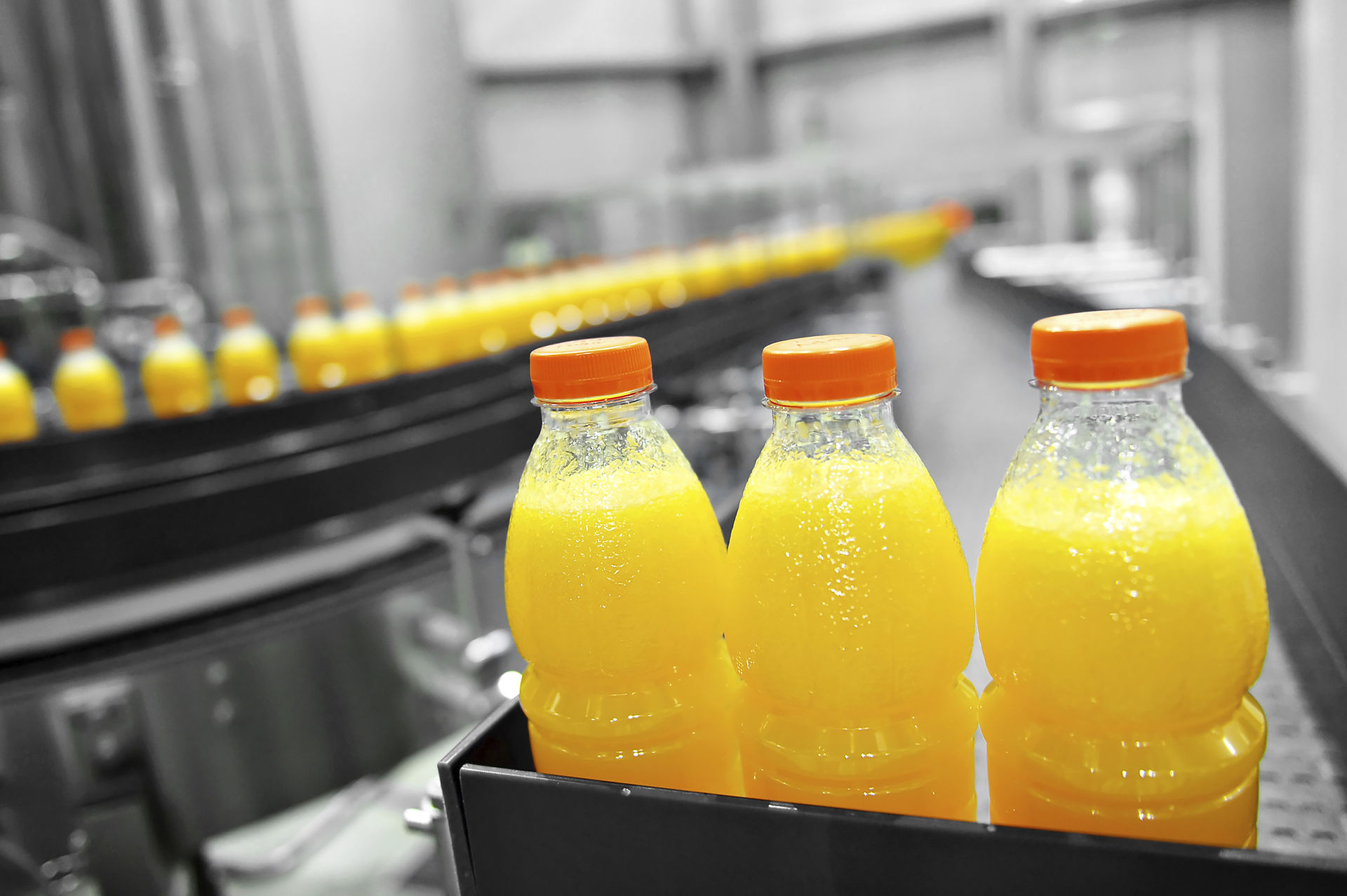

🍺 Food and Beverage
Every bottle. Every can. Water control made it possible.
Boiler feed systems at food processing plants, breweries, and hospitals require ultra-pure water before it ever touches a heat exchanger. A boiler feed pump panel manages fill cycles and chemical injection sequences. A reverse osmosis skid control panel manages membrane pressure, permeate flow, and automated flush cycles.
Get the water chemistry wrong in a food processing environment and you have a contamination event. Get the pressure wrong in a boiler system and you have a very different kind of problem.
A PLC in these environments adjusts pump speeds through variable frequency drives (VFDs), initiates backwash sequences based on differential pressure thresholds, and modulates chemical dosing in response to real-time water quality measurements. All of it running continuously. All of it requiring a panel that was built correctly the first time.
⚙️ Process Water
The panel nobody sees is the one that matters most.
Every application in this industry runs through a UL508A listed industrial control panel built to the demands of its specific environment. NEMA 4X for wet outdoor locations. Stainless steel for corrosive chemical rooms. Explosion-proof ratings where methane is present in digester buildings.
The panel is not the glamorous part of a water project. The SCADA dashboard gets the screenshots. The HMI gets the demo at the project meeting. But nothing runs without the panel behind it. The wire, the terminals, the PLC rack, and the I/O cards that have been talking to sensors, valves, and motors since commissioning day.
We build panels for drinking water treatment, wastewater collection, wastewater treatment, process water, boiler feed, and reverse osmosis systems. If water moves through a process in your facility, we have built a panel for that environment.
Frequently Asked Questions:
Industrial Control Panels in the Water Industry
What is a pump panel?
A pump panel is an industrial control panel that manages the operation of one or more pumps in a water or wastewater system. It houses the electrical components, logic controllers, and protective devices needed to start, stop, alternate, and monitor pump performance. Pump panels in water applications typically include motor starters or variable frequency drives (VFDs), overload protection, Hand-Off-Auto (HOA) selector switches, run and fault indicator lights, and a PLC or relay-based control logic system. They are built to UL508A standards and housed in NEMA-rated enclosures suited to the environment they are installed in.
What is a lift station control panel?
A lift station control panel is a specialized pump panel designed to control submersible sewage pumps at a wastewater lift station or pump station. Lift stations are underground wet wells where gravity-fed sewage collects and must be pumped uphill to the next point in the collection system. The control panel manages pump alternation (lead-lag logic), wet well level monitoring via floats or pressure transducers, seal fail detection, high-level alarms, and remote communication back to a central SCADA system. Because lift stations operate unattended in remote locations, the control panel must be able to respond to faults automatically and alert operators through telemetry or cellular communication.
What is SCADA and how is it used in water and wastewater systems?
SCADA stands for Supervisory Control and Data Acquisition. It is a software and hardware system that allows operators to monitor, control, and collect data from equipment across an entire water or wastewater facility in real time. In a water treatment plant, a SCADA system connects to industrial control panels, PLCs, flow meters, pressure sensors, analyzers, and valve actuators to give operators a live view of every process on a single screen. Operators can see pump run status, tank levels, chemical feed rates, flow totals, alarms, and historical trends. SCADA systems are also used to generate regulatory compliance reports and to send alarm notifications to operators via text, email, or phone when something goes wrong. Common SCADA platforms used in the water industry include Ignition by Inductive Automation, Rockwell FactoryTalk View SE, and AVEVA System Platform.
What is a duplex pump panel?
A duplex pump panel controls two pumps that work together in the same application, most commonly at a lift station or booster station. The panel alternates which pump runs as the lead pump on each cycle to equalize wear across both units. If the lead pump fails or cannot keep up with demand, the second pump automatically starts. Duplex pump panels include logic for lead-lag alternation, simultaneous run under high-demand conditions, individual pump fault monitoring, and runtime hour tracking for maintenance scheduling. They are one of the most common panel types built for water and wastewater collection systems.
What is an RTU panel in water and wastewater? An RTU (Remote Terminal Unit) panel is a control and communication panel used at remote unmanned sites like lift stations, booster stations, storage tanks, and pressure monitoring points. The RTU collects data from local sensors and equipment and transmits it back to a central SCADA system via cellular, radio, fiber, or Ethernet. It can also receive commands from the SCADA system to operate valves, start or stop pumps, or change setpoints without requiring an operator to physically visit the site. RTU panels are critical to managing distributed water and wastewater infrastructure across a municipality or utility service area.
What is a Motor Control Center (MCC) in a water treatment plant?
A Motor Control Center is a centralized enclosure system that houses multiple motor starters, variable frequency drives, and protective devices for all the motors in a facility or process area. In a water treatment plant, the MCC may control high service pumps, raw water pumps, chemical feed pumps, blower motors, and clarifier drives from a single organized structure. MCCs reduce wiring complexity, improve safety through centralized disconnect capability, and make troubleshooting easier. They are typically integrated with the plant-wide SCADA system through a PLC or DCS housed in the same structure or in a nearby industrial control panel.
What is a chemical feed control panel?
A chemical feed control panel automates the dosing of treatment chemicals into a water or wastewater process. Common chemicals controlled by these panels include sodium hypochlorite for disinfection, ferric sulfate or aluminum sulfate for coagulation, sodium hydroxide or sulfuric acid for pH adjustment, and polymer for sludge conditioning. The panel receives input from water quality analyzers such as chlorine analyzers, pH meters, and turbidity sensors, and adjusts chemical pump output in real time to maintain target dosage levels. Chemical feed panels are commonly found at drinking water treatment plants, wastewater effluent polishing systems, and industrial process water systems.
What is a Variable Frequency Drive (VFD)
and why is it used in pump panels?
A Variable Frequency Drive is an electronic device that controls the speed of an AC motor by varying the frequency and voltage of the power supplied to it. In pump panels for water and wastewater applications, VFDs allow pump speed to be adjusted in response to flow demand, pressure setpoints, or level readings rather than running the pump at full speed all the time. This reduces energy consumption, extends pump and motor life, eliminates water hammer from abrupt starts and stops, and allows precise flow control. VFDs are standard components in high service pump panels, booster pump panels, and lift station pump panels on larger installations.
What does UL508A mean for industrial control panels?
UL508A is the Underwriters Laboratories standard for industrial control panels. A UL508A listed panel has been designed, built, and inspected according to strict requirements for electrical safety, component ratings, wire sizing, spacing, and labeling. Most municipalities, utilities, and industrial customers require UL508A listing on all control panels they purchase. The listing is granted by a certified third-party inspector who visits the panel shop and reviews the build against the standard. It provides assurance that the panel was built safely and to a consistent professional standard, which also protects the end user during insurance claims and regulatory inspections.
What is a NEMA 4X enclosure and when is it required?
A NEMA 4X enclosure is a type of electrical enclosure rated for protection against dust, water ingress from any direction including hose-directed water, and corrosion. The X designation specifically adds corrosion resistance, which is critical in water and wastewater environments where enclosures are exposed to chlorine off-gassing, hydrogen sulfide, sodium hypochlorite splash, and constant humidity. NEMA 4X enclosures are standard for outdoor lift station control panels, chemical room panels, and any panel installed in a wet or corrosive environment. They are typically constructed from 304 or 316 stainless steel or fiberglass reinforced polyester.
What types of industrial control panels are used in the water industry? The water and wastewater industry uses a wide variety of industrial control panels depending on the application. The most common include pump panels, duplex pump panels, lift station control panels, chemical feed control panels, filter control panels, aeration control panels, clarifier drive panels, UV disinfection panels, RTU panels, boiler feed pump panels, reverse osmosis skid control panels, blower control panels, and Motor Control Centers. Each panel type is designed for its specific process environment and integrates with the facility's SCADA system to provide operators with centralized monitoring and control across all processes.
